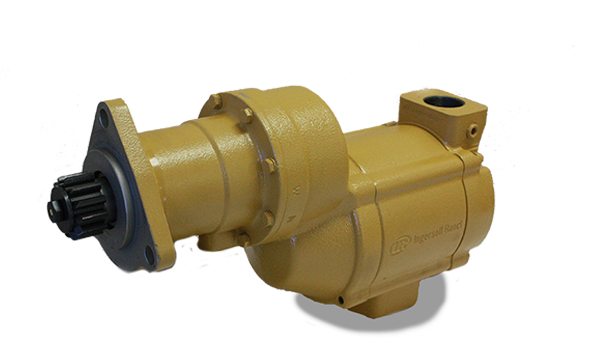

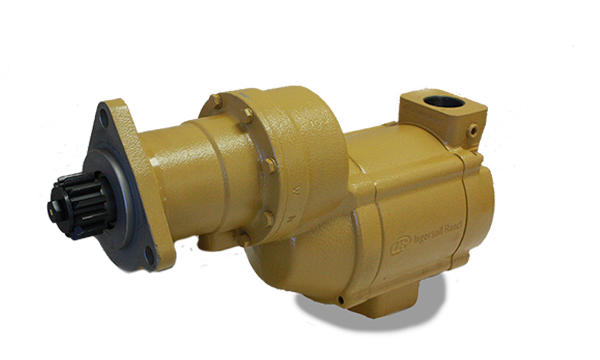

SS800 Vane Starter

SS800 Vane Starter

Product Code: Ingersoll Rand
Product Number:
SKU:


For engine displacement of Diesel–300 to 3600 CID (5 to 60 liters) Carburated–1000 to 7200 CID (16 to 120 liters) Industry applications ideal for the 150T Series starters - marine, trucking, transit, oil and gas.

Features

Overview

  • All models sealed for use in air or gas applications
  • Offset design for simple mounting
  • Powerful 80 hp motor
  • Multiple offset gear ratios: B = 2.18:1; C = 2.53:1; D = 3.44:1
  • Backcap ports for injection lubricating


Versatility

  • Inertia (SS810) and pre-engaged (SS815, SS825, and SS850) starters available
  • 4 inlet, 4 exhaust, and 16 drive housing orientations
  • 90-150 psi (6.2-10.3 bars) operation
  • Remanufactured starters available
  • Left- and right-hand rotation available
 REQUEST A QUOTE


Displacement
Bore
Stroke
Speed Range
Maximum Continuous Horsepower
Aspiration
Normal Oil Pressure
Oil Temperature
Normal Coolant Temperature
Dry Weight
Number of Cylinders
Compression Ratio
Firing Order
Engine Length
Engine Width
Engine Height
Crankcase Capacity (Including Filter)
Flywheel Housing
SS810 and SS815 Series
Performance Information
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
90 (6.2)
  170 (230)
 2700
 45 (34)
 1100 (519)
120 (8.3)
 205 (278)
 2800
 58 (43)
 1250 (590)
150 (10.3)
 250 (339)
 3200
 75 (56)
 1700 (802)
SS825 Series
Performance Information
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
90 (6.2)
 200 (271)
 2300
 45 (34)
 900 (425)
120 (8.3)
 240 (325)
 2400
 58 (43)
 1100 (519)
150 (10.3)
 300 (407)
 2700
  75 (56)
 1350 (637)
