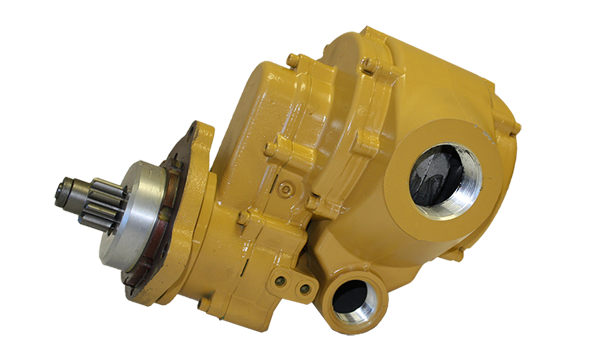

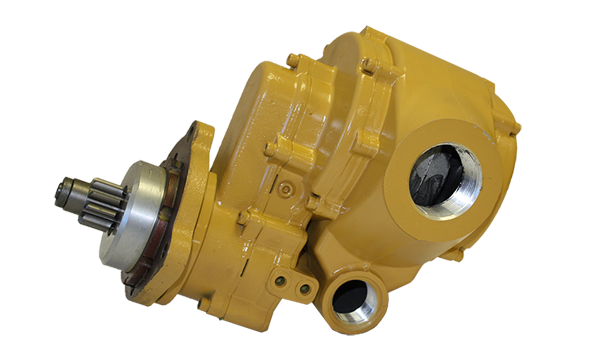

SS100 Vane Starter

Product Code: Ingersoll Rand
Product Number:
SKU:


Compact Versatility. ONE air starter fits engines up to 10+ liters!  With a flexible, easy-to-install design and a durable lube-free motor with plenty of torque, the SS100 air starter provides the versatility, reliability and power you need to start things right.

Features

Overview

Versatility.

  • One size fits engines up to 10+ liters to lower cost and reduce inventory
  • Compact design and flexible mounting for easy fit-up
  • Standard and metric pinions fit most manufacturers’ small engines.
  • Overhung pinion and 360° flange design for easy installation
  • Dependable accessories including valves, mufflers and deflectors

Durability

  • Patent-pending starter design built tough with proprietary materials to deliver a revolutionary lube-free vane motor
  • Alloy steel motor components ensure reliability in harsh conditions.
  • Offset gear design for rugged power transfer and easy field service

Power

  • Powerful lube-free vane motor can be used with air or natural gas
  • Class-leading starting torque for engines up to 10+ liters
 REQUEST A QUOTE


Displacement
Bore
Stroke
Speed Range
Maximum Continuous Horsepower
Aspiration
Normal Oil Pressure
Oil Temperature
Normal Coolant Temperature
Dry Weight
Number of Cylinders
Compression Ratio
Firing Order
Engine Length
Engine Width
Engine Height
Crankcase Capacity (Including Filter)
Flywheel Housing


SS100 Vane Starter Series
Performance Information
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
30 (2.1)
18 (24)
 1,290
2.5 (1.9)
110 (52)
60 (4.1)
43 (58)
 1,625
7 (5.2)
215 (101)
90 (6.2)
60 (81)
 1,800
10.5 (7.8)
315 (149)
120 (8.3)
82 (111)
 1,900
 15 (11.2)
415 (196)
150 (10.3)
 82 (111)
 1,900
 15 (11.2)
415 (196)
