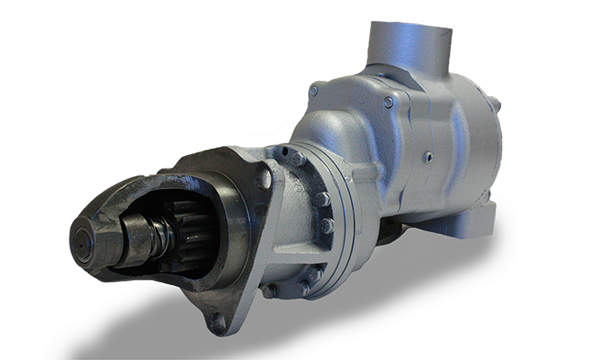

150T Turbine Starter

150T Turbine Starter


Product Code: Ingersoll Rand
Product Number:
SKU:


For engine displacement of Diesel–300 to 3600 CID (5 to 60 liters) Carbourated–1000 to 7200 CID (16 to 120 liters) Industry applications ideal for the 150T Series starters - marine, trucking, transit, oil and gas.

Features


Overview

  • Provides 35% more output torque than 150T™ “E” Series Model
  • Same inlet and outlet locations as the 150BM and 150T™ “E” Series starters for easy change-out
  • Uses the proven front end of the 150BM starter
  • Provides maintenance-free operation
  • Sealed for use in gas and air applications
  • Efficient 30 hp turbine motor uses no external lubrication


Versatility

  • Inertia and pre-engaged models available
  • Left- and right-hand rotation available
  • 4 inlet, 4 exhaust, and 16 drive housing orientations
  • 30-150 psi (2.1-10.3 bars) operation
REQUEST A QUOTE


Displacement
Bore
Stroke
Speed Range
Maximum Continuous Horsepower
Aspiration
Normal Oil Pressure
Oil Temperature
Normal Coolant Temperature
Dry Weight
Number of Cylinders
Compression Ratio
Firing Order
Engine Length
Engine Width
Engine Height
Crankcase Capacity (Including Filter)
Flywheel Housing
150TMPF/150TMGF
Performance Information – 44% Arc
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
60 (4.1)
74 (100)
1296
 9 (7)
 310 (146)
90 (6.2)
113 (153)
1480
16 (12)
430 (203)
120 (8.3)
147 (200)
1580
22 (17)
570 (269)
150 (10.3)
182 (247)
1620
28 (21)
710 (335)
150TLPF
Performance Information – 99% Arc
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
30 (2.1)
72 (98)
1185
8 (6)
340 (160)
60 (4.1)
132 (179)
1500
19 (14)
580 (274)
90 (6.2)
206 (280)
1530
30 (23)
780 (368)
