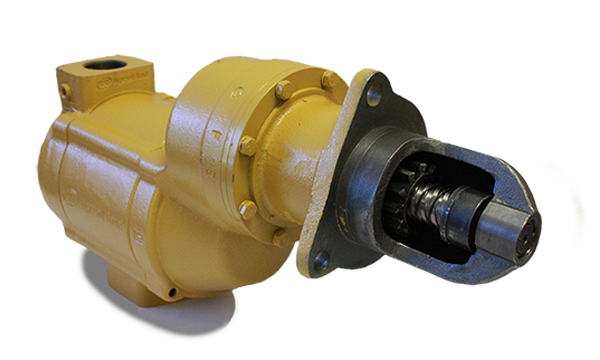

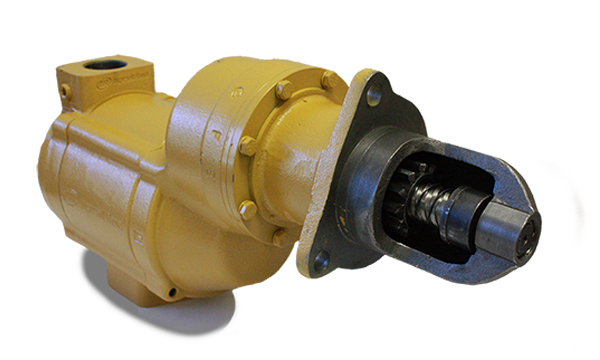

150BMG Vane Starter


Product Code:
Product Number:
SKU:


For engine displacement of: Diesel–500 to 2000 CID (8 to 32 liters) Carburated–1000 to 4000 CID (16 to 64 liters)

Features


Overview

  • 150BMG model sealed for use in gas or air applications
  • Rugged 34 hp motor
  • Multiple offset gear ratios: C = 2.69:1; E = 3.46:1; D = 3.94:1
  • Backcap ports for injection lubricating

Versatility

  • Inertia and pre-engaged drives available
  • Left- and right-hand rotation available
  • 4 inlet, 4 exhaust, and 18 drive housing orientations
  • 90-150 psi (6.2-10.3 bars) operation
  • Inline and offset designs
REQUEST A QUOTE


Displacement
Bore
Stroke
Speed Range
Maximum Continuous Horsepower
Aspiration
Normal Oil Pressure
Oil Temperature
Normal Coolant Temperature
Dry Weight
Number of Cylinders
Compression Ratio
Firing Order
Engine Length
Engine Width
Engine Height
Crankcase Capacity (Including Filter)
Flywheel Housing


150BMGE/150BMPE Series
Performance Information
Pressure PSI (bar) Breakaway Torque lbf-ft (Nm) Speed @ Max HP RPM
Max HP (kw) Flow @ Max HP SCFM (L/s)
90 (6.2)

100 (136)
1700
16 (12)
380 (179)
120 (8.3)
130 (176)
1900
24 (18)
500 (236)
150 (10.3)
155 (210)
2200
32 (24)
680 (321)
